Electric soft seal gate valve

The top-mounted structure of the electric soft-sealed gate valve reduces the connecting bolts of the valve body, enhances the reliability of the valve and can overcome the influence of the weight of the system on the normal operation of the valve. It overcomes the defects of general gate valve such as poor sealing, elastic fatigue and easy corrosion. It uses the compensation effect of the elastic gate plate to produce a small amount of deformation to achieve a good sealing effect. It has the obvious advantages of light switch, reliable sealing, good elastic memory and long service life.

Description
customer review
product tags

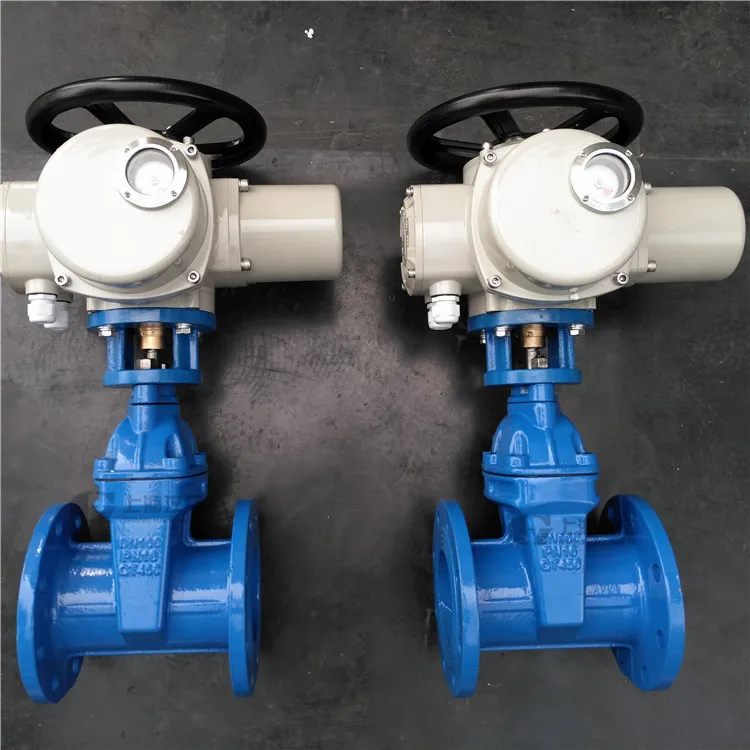

Electric soft seal gate valve

【Working temperature】0～80℃

【Suitable medium】Water, steam, oil, etc

【Application】Electricity, construction, environmental protection, water treatment, water supply and drainage, etc

Product Advantages

1.QT450-10 ductile iron body, 3 levels spheroidization rate, the tensile strength is 450MPa, the extension rate is over 10%. It is not easy to crack and freeze crack.

2. Epoxy coating for both valve inside and outside. Over 250μm coating thickness. Effectively prevent valve body corrosion and rust. It can be used in sewage system.

3. 50% rubber content EPDM coated DI wedge. The rubber is firmly coated with wedge, which is not easy to fall off.

4. 2Cr13 valve stem. Three O-ring sealing design. Reduce frictional resistance when switching, avoid medium exposure.

5. Brass stem nut and positioning device, switch smoother and avoids jamming during operation.

6. IP65 protection level electric actuator .

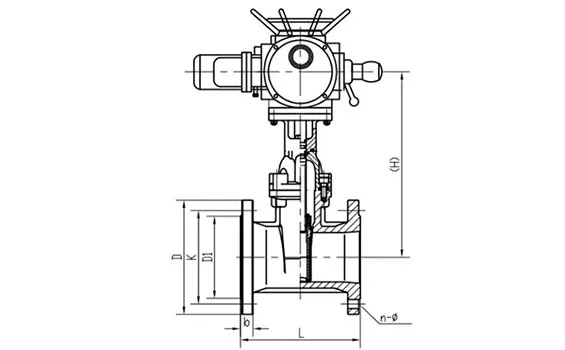

Parameter information

Read More About gate valve types

Name	Design and manufacture	Face to face Length	Pressure Test	Top Flange
Reference standard	CJ/T 216 ANSI C515	GB/T 12221 ASME B16.10	CJ/T 216 API 598	GB/T 17241.6 ASME B16.1

Name	1-Body	2-Wedge	3-Stem	4-Electric actuator
Material	DI	DI+EPDM	2Cr13	component

Nominal size			PN16		150LB
DN	NPS（inches）	L	K	n-φ	K	n-φ
50	2”	178	125	4-19	120.7	4-19
65	2 1/2”	190	145	4-19	139.7	4-19
80	3”	203	160	8-19	152.4	4-19
100	4”	229	180	8-19	190.5	8-19
125	5”	254	210	8-19	215.9	8-22
150	6”	267	240	8-23	241.3	8-22
200	8”	292	295	12-23	298.5	8-22
250	10”	330	355	12-26	362	12-25
300	12”	356	410	12-26	431.8	12-25
350	14”	381	470	16-26	476.3	12-29
400	16”	406	525	16-30	539.8	16-29
450	18”	432	585	20-30	577.9	16-32
500	20”	457	650	20-34	635	20-32
600	24”	508	770	20-37	749.3	20-35
700	28”	610	840	24-37
800	32”	660	950	24-40
900	36”	711	1050	28-40
1000	40”	811	1170	28-43
1200	48”	1015	1390	32-49
