Place of Origin：Hebei

Warranty：1 YEAR

Customized support：OEM, ODM

Brand Name：Storan

Model Number：3001

Material：stainless steel

Accuracy：0class

Product name：Straight Edge 500-4000mm

Material：Magnalium

Size：75-2000mm

Package：plywood box

certificate：ISO9001

Grade：0 class

Shipping：by sea or AIR

precision：0 grade 1grade 2grade

Application：High precise measure

Yield-point：110kg/mm2

Selling Units:：Single item

Single package size: 82X20X10 cm

Single gross weight: 5.000 kg

Lead time

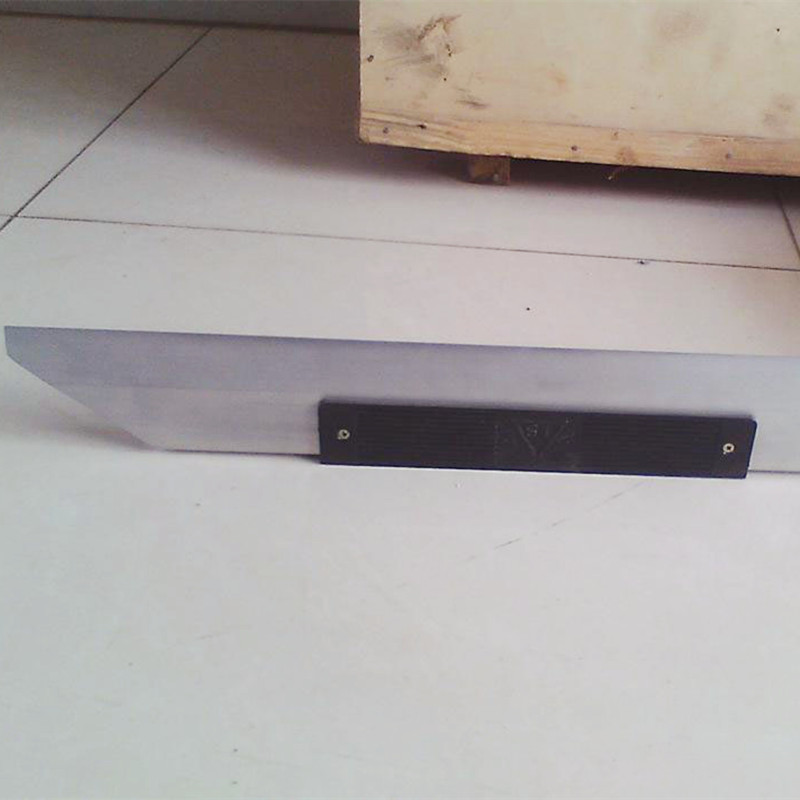

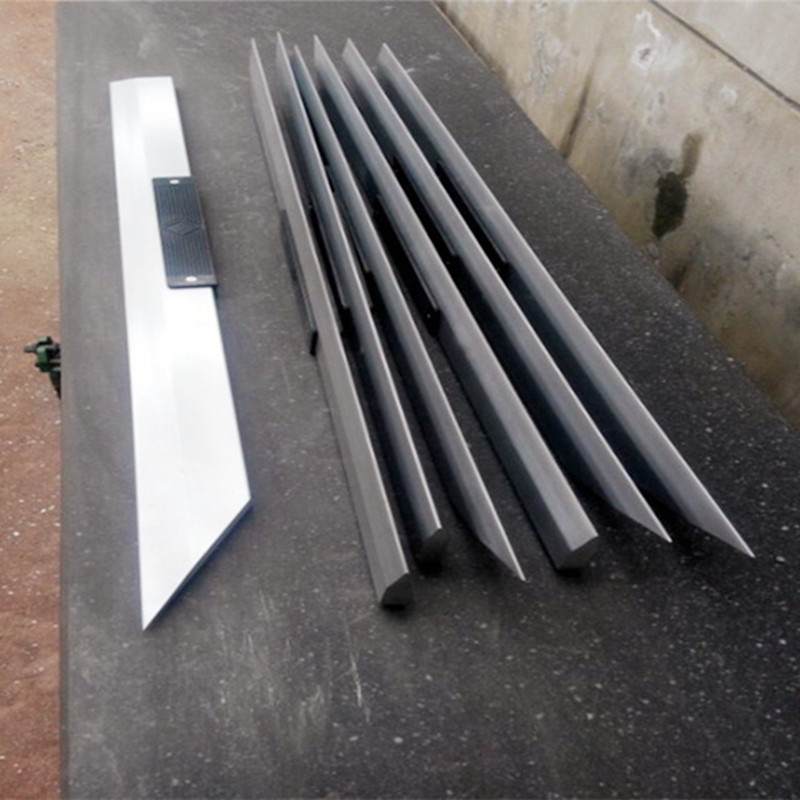

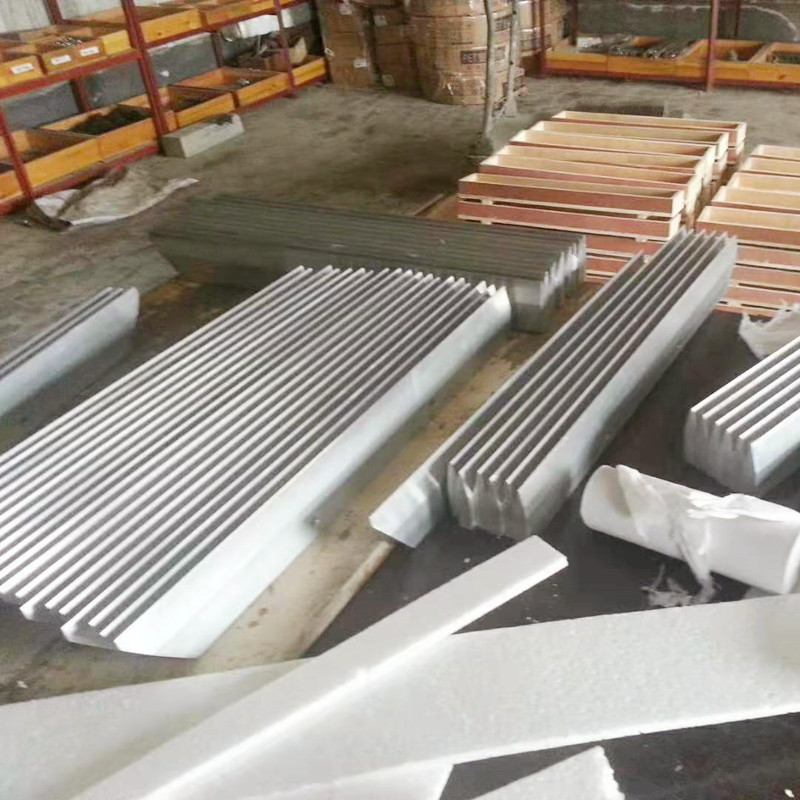

Precision carbon steel knife edge ruler elevator cylinder head ruler magnesium aluminum knife edge ruler

The magnesium aluminum knife edge ruler is mainly used for straightness measurement and flatness measurement using the light gap method, and can also be used together with measuring blocks to verify the accuracy of the plane. It has the advantages of simple structure, convenient operation, and high measurement efficiency, and is a commonly used measuring tool in mechanical processing. It generally has high accuracy, with straightness error controlled within 1 μ The measurement surface roughness is about 0.025 pieces with an accuracy of m. Knife edge rulers should be made of alloy tool steel, bearing steel, or magnesium aluminum alloy materials. It should undergo stability treatment and demagnetization treatment.

The magnesium aluminum knife edge ruler is used to measure straightness and flatness errors, and should be used in conjunction with a feeler gauge. When measuring, place the edge of the knife edge ruler perpendicular to the measured plane, and use a feeler gauge to fill the gap under the edge to measure the flatness error. During inspection, if the light transmission between the edge ruler and the workpiece plane is weak and uniform, then the flatness of the workpiece is qualified; If the intensity of the incoming light is uneven, it indicates that the surface of the workpiece is uneven. The flatness error can be determined by inserting a feeler gauge at the close position between the edge ruler and the workpiece, based on the thickness of the feeler gauge.

Advantages of magnesium aluminum knife edge ruler: lightweight, convenient to use, not easily deformed, not rusty, and easy to store.
